Flow capacities 16.5 to 109 ICFM
Horsepower ratings 5 to 30
Pressure rating 125 to 150 PSIG
Instrument Air Unit - TIA-G
TIA-G Series

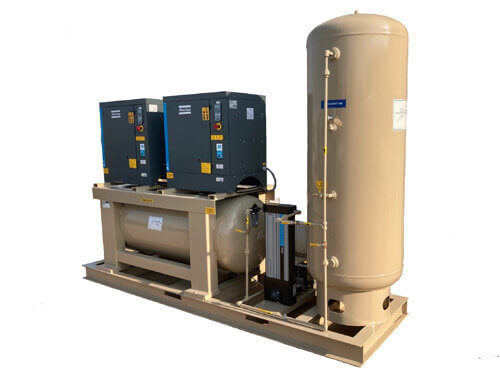

TESCORP “TIA-G” Series systems are designed and constructed for application to meet the rugged and harsh oilfield requirements for a continuous “instrument quality” air supply with 100% redundancy for critical operation. Designed and constructed with the Atlas Copco “G Series” Oil Flooded Rotary Screw compressor in a duplex 100% redundant configuration, the TESCORP TIA-G series provide continuous air supply with the capabilities to supply 200% flow rates upon demand.
Instrument Air Unit Features and Options:
- Two (2) Atlas Copco “G Series Oil Flooded Rotary Screw Compressors
- One (1) Atlas Copco CD+ “Heatless Regenerative “Dryer rated -40°F Dewpoint
- One (1) “Wet Air” air receiver
- One (1) “Dry Air” air receiver
- One (1) Automatic electronic “no loss” condensate drain valve
- Inter-connecting piping, valves, gauges and relief valves
- Common electrical connection box with circuit breakers and control transformer
- Weatherproof protection on all electrical components
Instrument Air Unit Features
TIA-G Model Number
- TIA-G-5 D
- TIA-G-7.5 D
- TIA-G-10 D
- TIA-G-15-D
- TIA-G-20-D
- TIA-G-25-D
- TIA-G-30-D
Horsepower
- 5 Hp
- 7.5 Hp
- 10 Hp
- 15 Hp
- 20 Hp
- 25 Hp
- 30 Hp
Air Capacity (ICFM)
124 Psi / 150 Psi
- 16.5 @ 145 Psi
- 21.2 @ 145 Psi
- 40.2 / 35.8
- 56.3 / 51.5
- 84.7 / 76.5
- 106.3 / 92.1
- 109.3 / 05.3
Wet Air Storage
- 120 Gallon
- 120 Gallon
- 120 Gallon
- 120 Gallon
- 200 Gallon
- 200 Gallon
- 200 Gallon
Dry Air Storage
- 120 Gallon
- 120 Gallon
- 120 Gallon
- 120 Gallon
- 200 Gallon
- 200 Gallon
- 200 Gallon
