2-Stage Rotary Vane Compressor
40 to 500 Horsepower
29″ HgV Vacuum to 15 PSIG Inlet Pressure
Maximum Discharge Pressure 150 PSIG

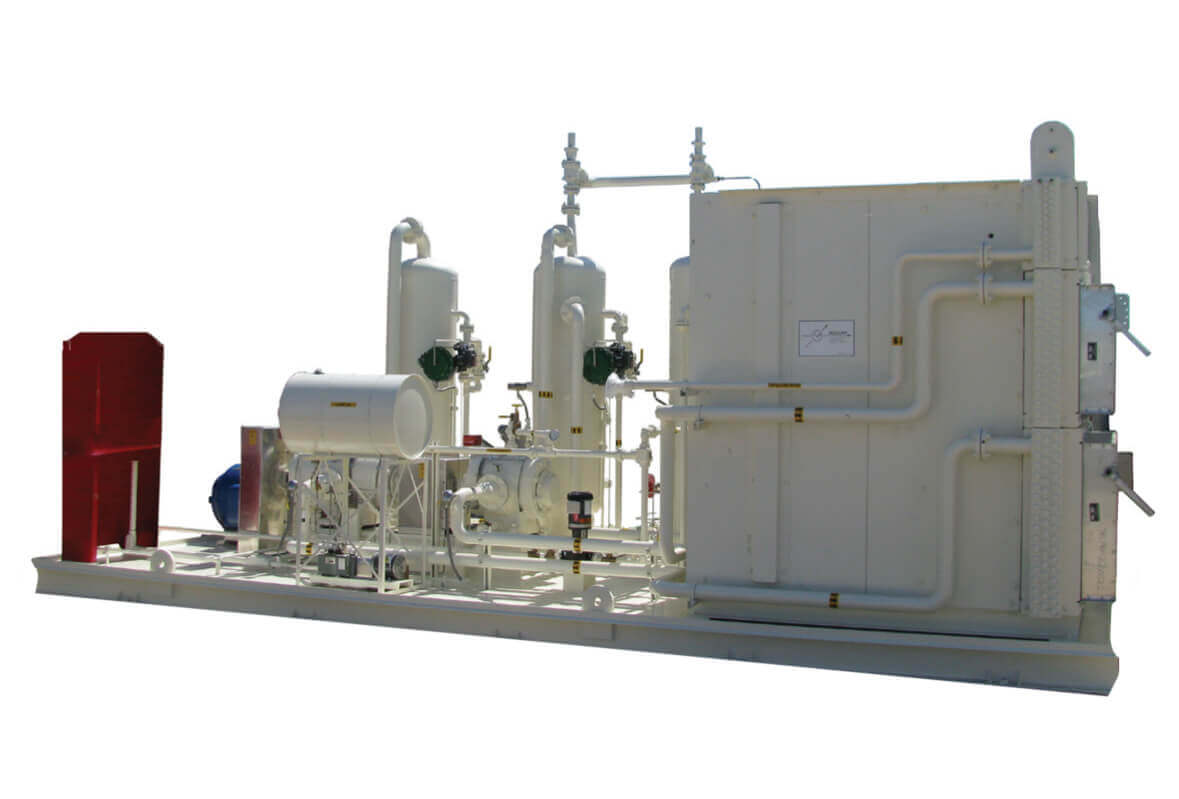

Customizable Two-Stage Rotary Vane Compressor System
CVR-2 Series
The TESCORP “CVR-2” SERIES is a completely self-contained two-stage compression system for applications for stock tank vapor recovery, flare gas recovery, or medium-pressure process gas application. Constructed with a rugged rotary vane compressor and TESCORP vapor recovery technology and components, the CVR-2 is a complete and fully-automated system for applications that require gas cooling, proportional capacity control, and sophisticated PLC driven control logic and communications.
The unit offers the following design and optional features:
Two-stage rotary vane compressor with:
- Liquid-cooled for continuous duty
- Oil-lubricated compressor
- Mechanical seal
- Special vapor recovery heads for saturated gas applications
Force feed lubrication system complete with:
- Progressive flow type divider block lubricator, manifold, filter, and oil storage reservoir
- Oil flow indicators, flow monitor, and controls
Premium efficiency electric motor drive with:
- TEFC enclosure, NEMA “B” torque, 1.15 service factor
- Inverter duty for application with “VFD” drive
Suction scrubber constructed per the following:
- Designed, constructed, stamped and National Board Certified per ASME Section VIII
- 1/8” corrosion allowance
- 316 SS mist eliminator
- Condensate level controls, gauges, pump rated for flow and pressure
Heat exchanger assembly complete with the following:
- Gas after-cooler for 30°F at 100°F ambient approach, motor and manual louvers
- Designed, constructed, stamped and National Board Certified per ASME Section VIII
- Closed loop compressor jacket water cooling system for continuous 24/7 duty
CVR-2 Unit Construction:
- All electrical components and wiring per NEC Class I, Division II, Class B, C, & D
- Skid assembly conforms to ASTM A-36 requirements
- All rotating equipment is fully protected with non-sparking guards
- All units receive a complete mechanical/control run test with documentation
Options:
- Sour or corrosive gas (NACE compliant)
- Motor starters and/or VFD drives
