TESCORP Instrument Air Compressors and Systems

The TESCORP Instrument Air Series provides a comprehensive solution for all your field instrument air systems needs. Available in both simplex and duplex configurations, our instrument air compressors are designed for continuous and redundant operations. These units are offered as either open skid-mounted systems or fully enclosed setups for use in harsh weather conditions.

Key Features and Options of Instrument Air Units

Air pressure up to 200 psi with continuous flow volumes ranging from 8 CFM to 608 CFM.
Compressor options include continuous duty industrial reciprocating, rotary vane, or rotary screw instrument air compressors for optimal performance.
Fully automated control systems with the option to interface with the customer’s plant DCS.
Heatless desiccant dryers rated to -40°F dew point with isolation and bypass valves, ensuring reliability in demanding conditions.
ASME VIII coded Wet and Dry receivers for enhanced durability.
Rugged oilfield skid with environmental containment, suitable for challenging environments.
Electrical configurations include 120/240 single phase and 240/480 three-phase options.

TESCORP Instrument Air Compressor Options

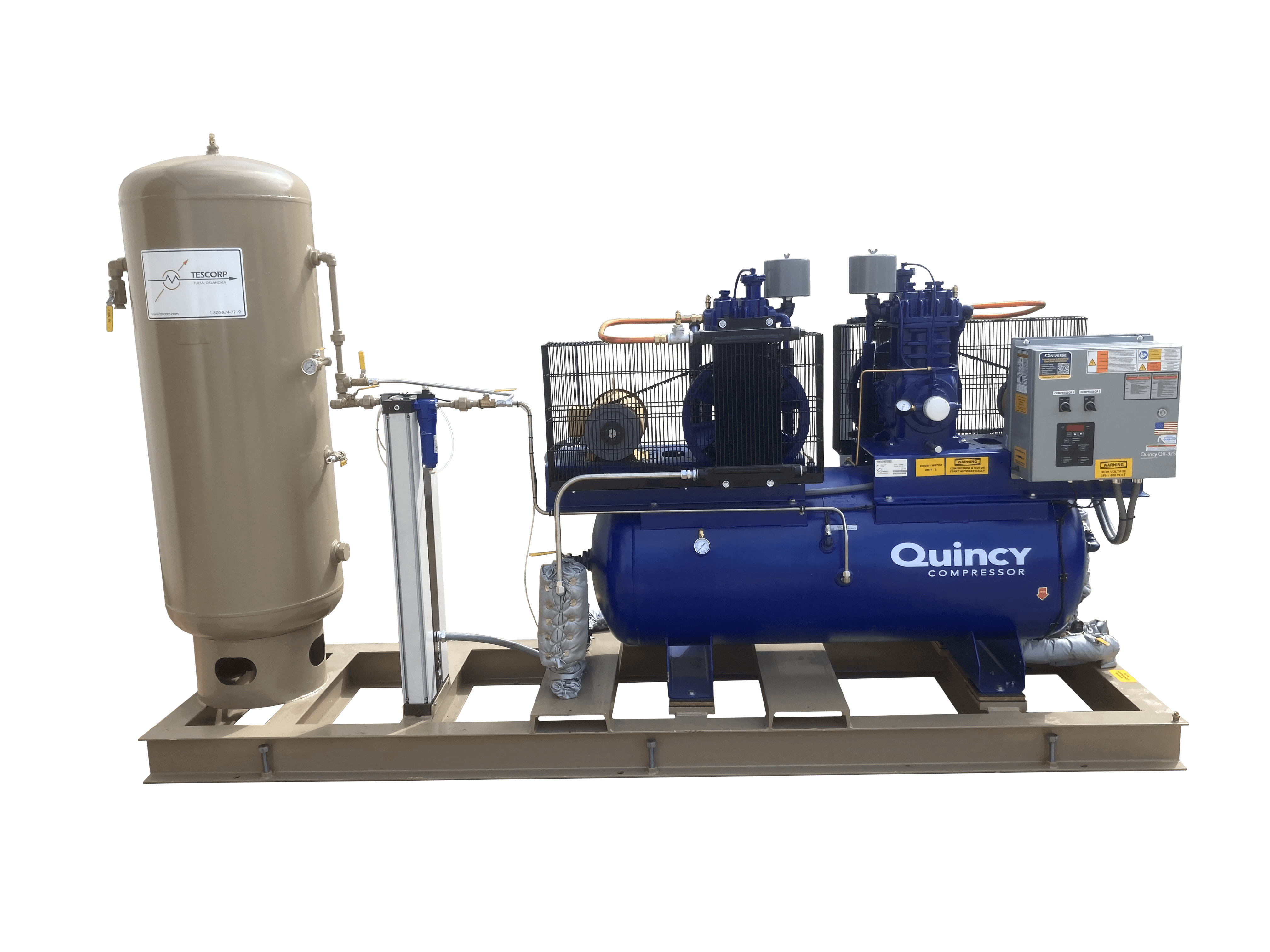

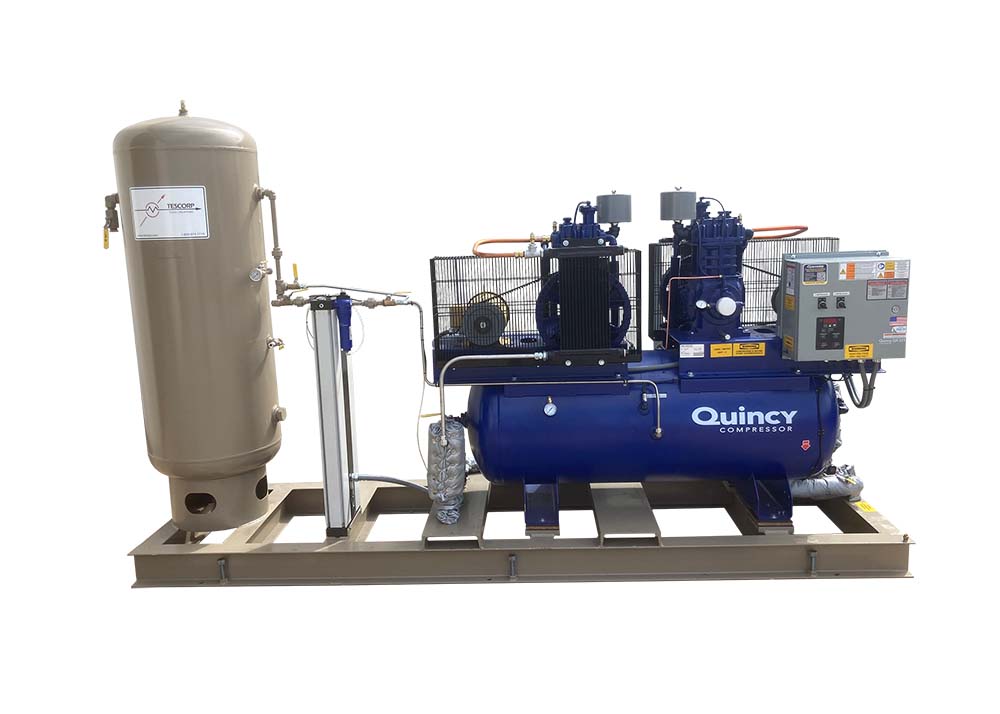

Quincy Instrument Air Units

Designed for small volume needs, the Quincy instrument air compressor package is compact and mounted on a wet receiver with an easily accessible control panel.

Flow rates: 8 to 125 CFM
Horsepower: 3 to 30 BHP

Mattei Instrument Air Units

These medium horsepower rotary vane instrument air compressors are engineered for high efficiency and long operational service. The unit comes in a NEMA 4 enclosure, providing protection in harsh environments.

Flow rates: 15 to 350 CFM
Horsepower: 5 to 60 BHP

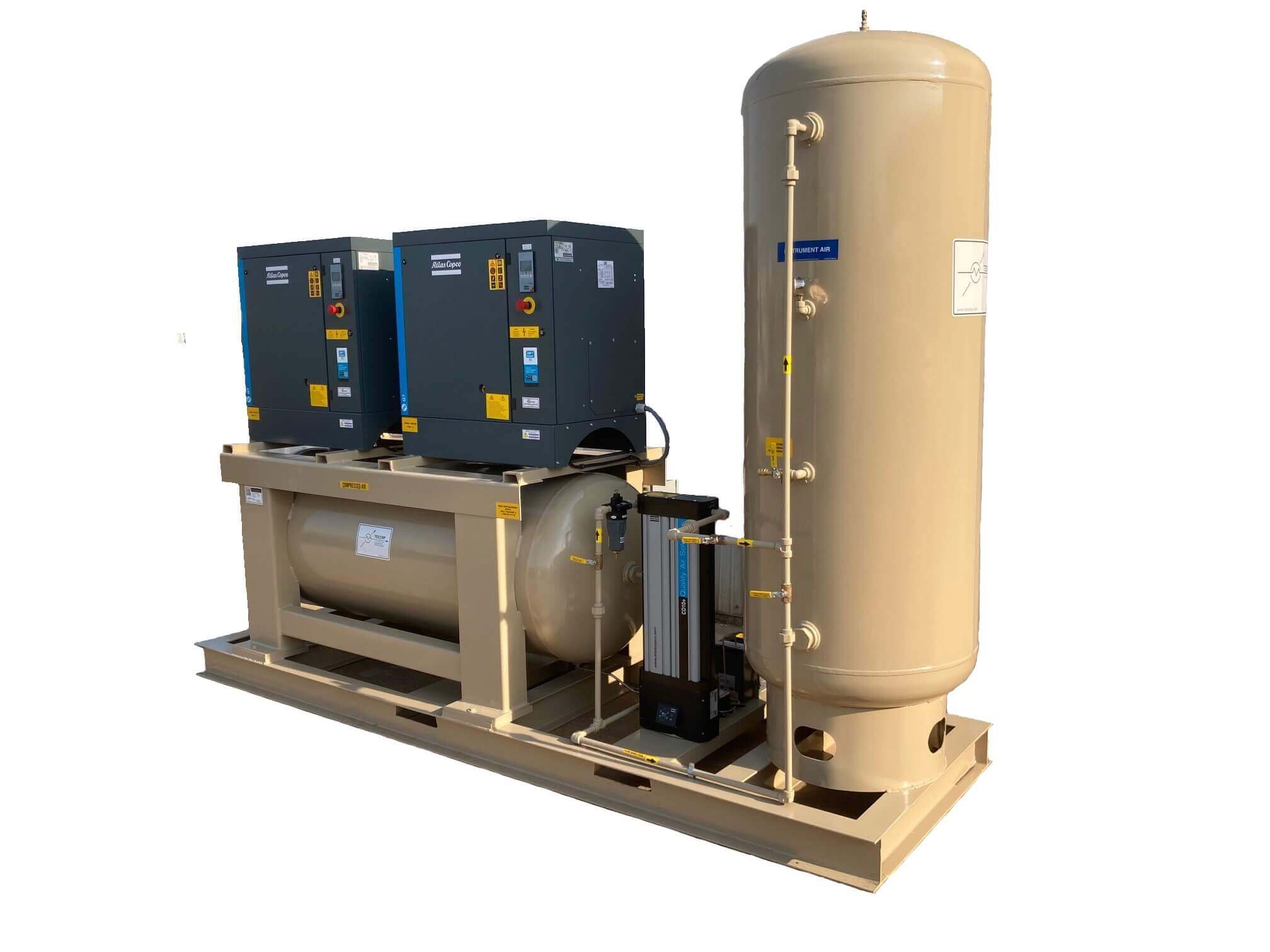

Atlas Copco Instrument Air Units

For medium to large volume requirements, the Atlas Copco rotary screw instrument air compressors offer consistent operational service. Built with a weather-protected enclosure, these units are ideal for continuous service in rugged conditions.

Flow rates: 54 to 608 CFM
Horsepower: 15 to 350 BHP

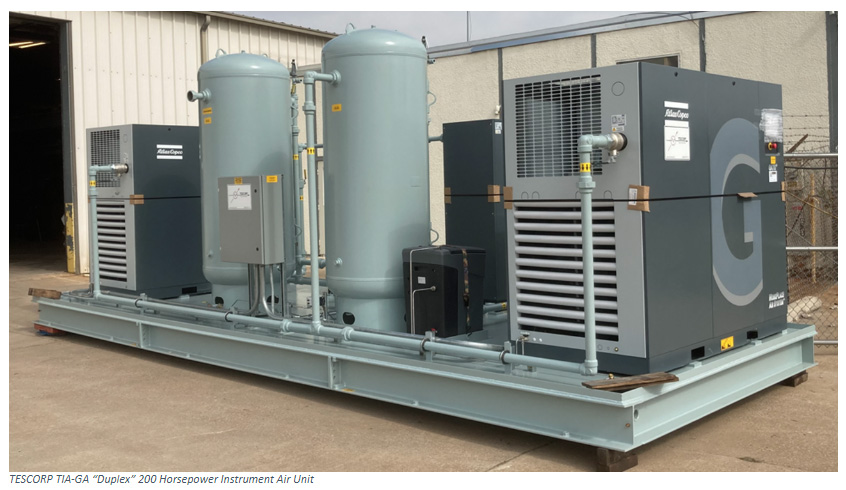

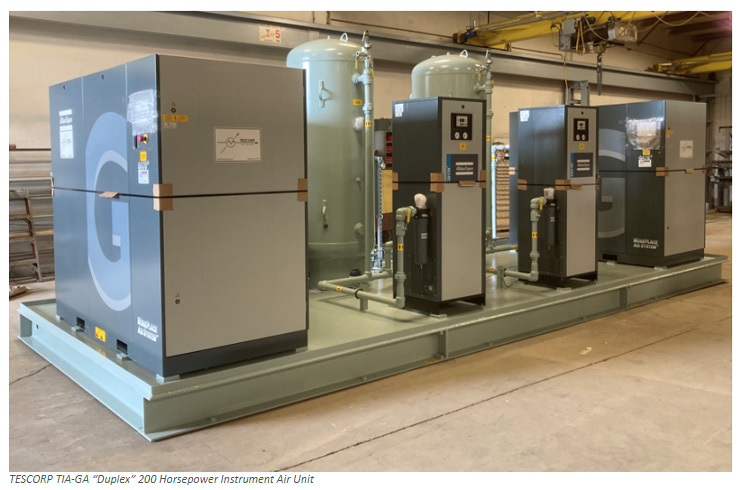

Duplex Instrument Air Units:

All units can be shipped as a duplex unit with a backup compressor available for 50% to 100% volume standby. Wet and Dry receives and Dryers can be duplexed as well.

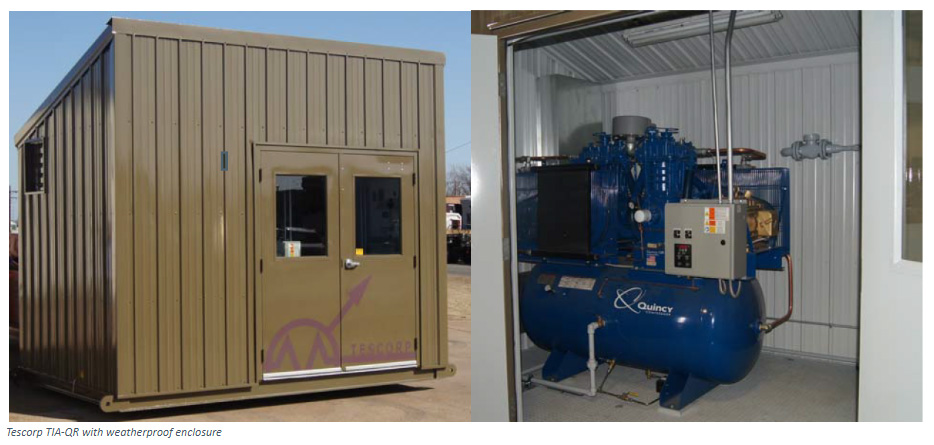

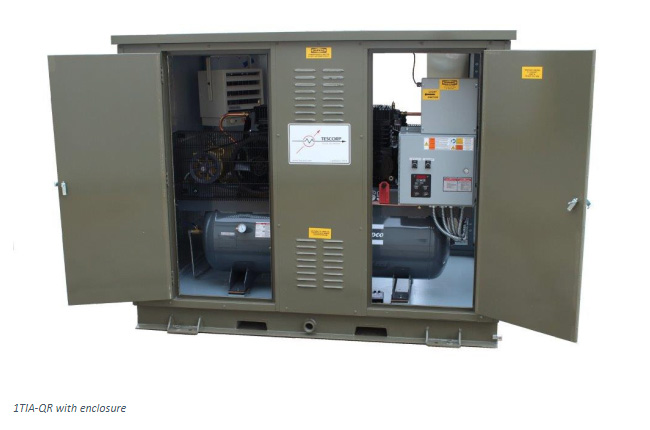

Enclosed Instrument Air Units:

TESCORP units are available with full-weather enclosures, fully transportable and personnel accessible structures. Designed for harsh and cold environments, the unit is climate controlled and insulated with expandable foam insulation encompassed in a full metal structure. Simple field installation includes one run of 480 VAC power and connection to your instrument air piping for turn-key operations.
