Flow capacities 24.7 to 530 ICFM x2
Horsepower ratings 7.5 to 125
Pressure rating 125 to 150 PSIG

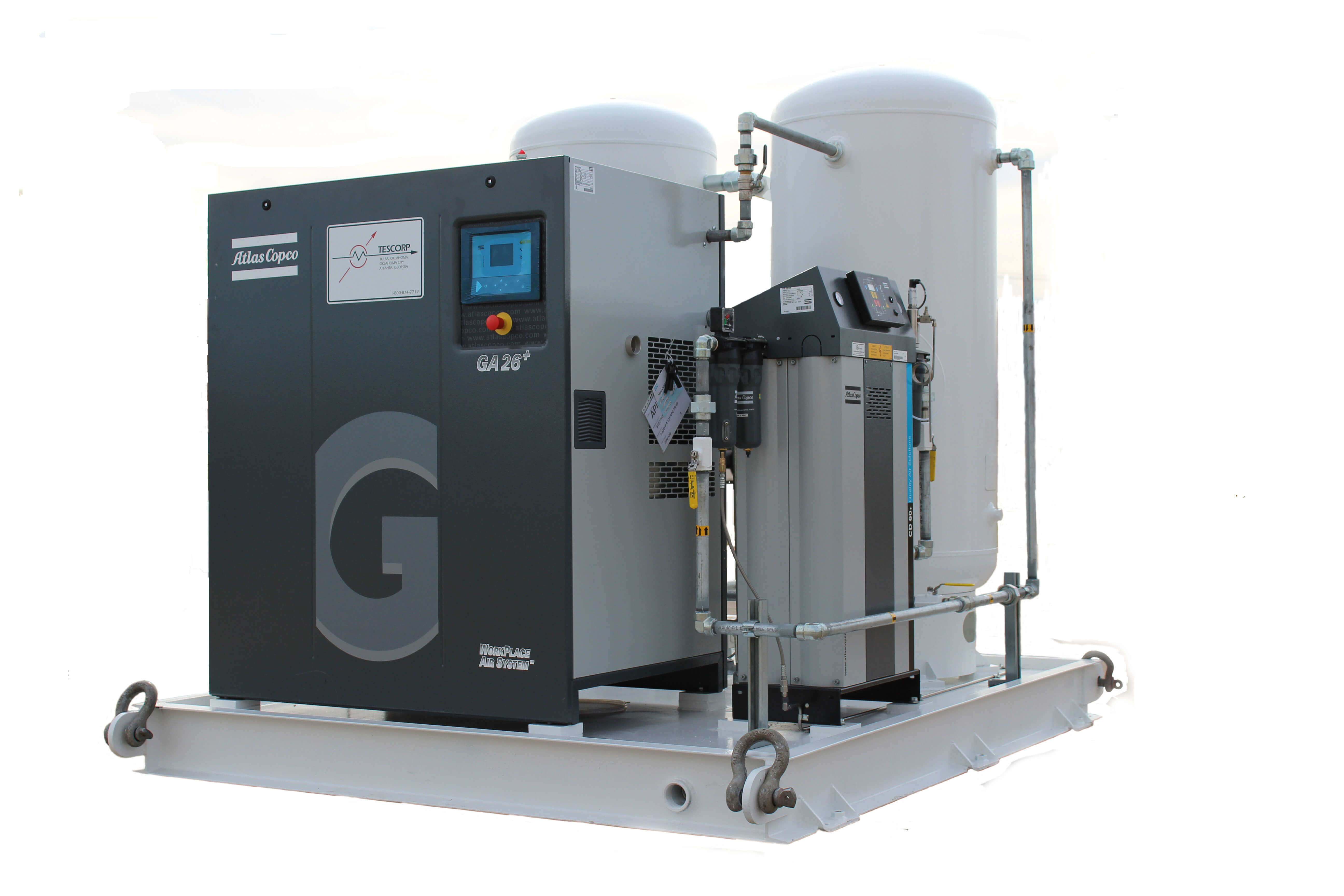

Instrument Air Unit - TIA-GA
TIA-GA Series
TESCORP “TIA-GA” Series systems are designed and constructed for application to meet the rugged and harsh oilfield requirements for a continuous “instrument quality” air supply with 100% redundancy for critical operation. Designed and constructed with the Atlas Copco “GA Series” Oil Flooded Rotary Screw compressor in a duplex 100% redundant configuration, the TESCORP TIA-G series provide continuous air supply with the capabilities to supply 200% flow rates upon demand.
Instrument Air Unit Features and Options:
- Two (2) Atlas Copco “G Series Oil Flooded Rotary Screw Compressors
- One (1) Atlas Copco CD+ “Heatless Regenerative “Dryer rated -40°F Dewpoint
- One (1) “Wet Air” air receiver
- One (1) “Dry Air” air receiver
- One (1) Automatic electronic “no loss” condensate drain valve
- Inter-connecting piping, valves, gauges and relief valves
- Common electrical connection box with circuit breakers and control transformer
- Weatherproof protection on all electrical components
Instrument Air Unit Features
Volume @ 150 PSI
- 24.7 ICFM
- 36.3 ICFM
- 52.5 ICFM
- 83.5 ICFM
- 101.3 ICFM
- 120.6 ICFM
- 142.9 ICFM
- 174.0 ICFM
- 204.0 ICFM
- 250.0 ICFM
- 300.0 ICFM
- 401.0 ICFM
- 530.0 ICFM
Horsepower
- 7.5
- 10
- 15
- 20
- 25
- 30
- 35
- 40
- 50
- 60
- 75
- 100
- 125
Compressor Model
- GA5-150AP
- GA7-150AP
- GA11+150AP
- GA15+150AP
- GA18+150AP
- GA22+150AP
- GA26+150AP
- GA30-150AP
- GA37-150AP
- GA45-150AP
- GA55-150AP
- GA75-150AP
- GA90-150Ap
Pre-Filter / After-Filter
- Included
- Included
- Included
- Included
- Included
- Included
- Included
- Included
- Included
- Included
- Included
- Included
- Included
Heatless Dryer
- CD+10
- CD12+
- CD+22
- CD35
- CD35
- CD45
- CD55
- CD65
- CD90
- CD90
- CD110
- CD165
- CD195
Wet Air Receiver
- 60 GAL
- 60 GAL
- 60 GAL
- 80 GAL
- 80 GAL
- 120 GAL
- 120 GAL
- 120 GAL
- 120 GAL
- 200 GAL
- 200 GAL
- 200 GAL
- 400 GAL
Dry Air Receiver
- 60 GAL
- 60 GAL
- 60 GAL
- 80 GAL
- 80 GAL
- 120 GAL
- 120 GAL
- 120 GAL
- 120 GAL
- 200 GAL
- 200 GAL
- 200 GAL
- 400 GAL
