Flow capacities 17.4 to 90.4 ICFM
Horsepower ratings 5 to 25
Pressure rating 175 PSIG
Instrument Air Unit - TIA-QR
TIA-QR Series

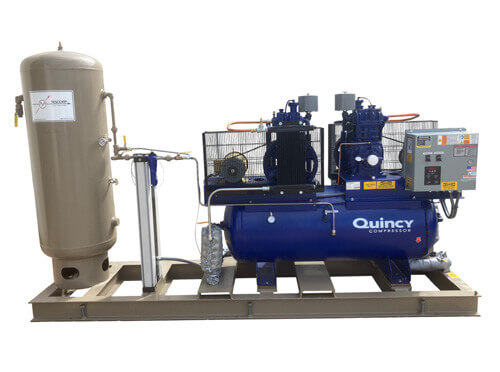

TESCORP “TIA-QR” Series systems are designed and constructed for application to meet the rugged and harsh oilfield requirements for a continuous “instrument quality” air supply with 100% redundancy for critical operation. Designed and constructed with the Quincy pressure lubricated reciprocating compressor in a duplex 100% redundant configuration, the TESCORP TIA-QR series provide continuous air supply with the capabilities to supply 200% flow rates upon demand.
Instrument Air Unit Features and Options:
- Two (2) Quincy “QR-25 Series” pressure lubricated, two-stage reciprocating compressors
- One (1) Quincy QMOD “Heatless Regenerative” dryer rated -40°F Dewpoint
- One (1) “Wet Air” air receiver
- One (1) “Dry Air” air receiver
- One (1) Automatic electronic “no loss” condensate drain valve
- Inter-connecting piping, valves, gauges and relief valves
- Common electrical connection box with circuit breakers and control transformer
- Weatherproof protection on all electrical components
Instrument Air Unit Features
TIA-QR Model Number
- TIA-QR-5 D
- TIA-QR-7.5 D
- TIA-QR-10 D
- TIA-QR-15-D
- TIA-QR-20-D
- TIA-QR-25-D
Horsepower
- 5 Hp
- 7.5 Hp
- 10 Hp
- 15 Hp
- 20 Hp
- 25 Hp
Air Capacity (ICFM) @ 175 Psi
- 17.4 lcfm
- 26 lcfm
- 33.4 lcfm
- 49.3 lcfm
- 67 lcfm
- 90.4 lcfm
Wet Air Storage
- 120 Gallon
- 120 Gallon
- 120 Gallon
- 200 Gallon
- 200 Gallon
- 200 Gallon
Dry Air Storage
- 120 Gallon
- 120 Gallon
- 120 Gallon
- 200 Gallon
- 200 Gallon
- 200 Gallon
