Single-stage Reciprocating Compressor
Air-cooled, Oil-free
3 to 30 Horsepower (13 sizes available)
VRU flows from 15 to 5 MSCFD @atmos
Flash gas booster flows to 400 Mscfd
Inlet pressure: 0 to 80 Psig
Discharge pressures: up to 260 Psig
Single-stage Reciprocating Gas Recovery System

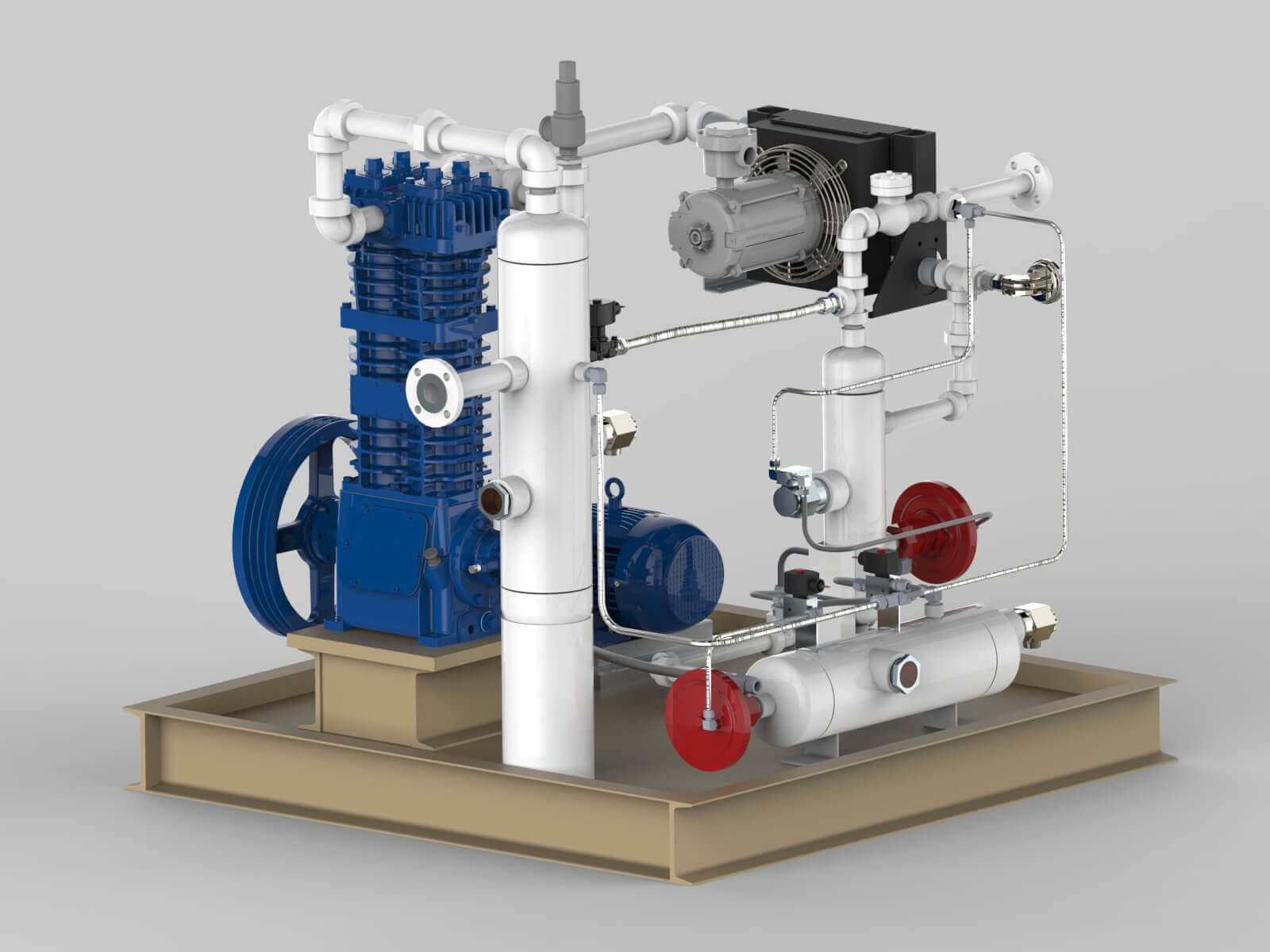

BVR-M 1 (Modular)
The TESCORP "BVR-MODULAR 1" Series is a completely self-contained compression system for applications for stock tank vapor recovery, flare gas recovery, or small flow, medium pressure process gas applications. Created as a compact and fully-contained system, it is constructed with a Blackmer air-cooled, single-stage, pressure lubricated, reciprocating gas compressor and TESCORP vapor recovery unit technology and components. The BVR-MODULAR 1 Vapor Recovery Unit is designed for applications in field gas or refinery process applications where very saturated and/or corrosive gases must be processed.
The unit offers the following design and optional features:
Single-stage reciprocating compressor with:
- Single-stage, single-acting, air-cooled
- Pressure lubricated power-frame compressor
- Single distance piece and seal assembly
- Corrosive gas trim
Premium efficiency electric motor drive with:
- TEFC enclosure, NEMA "B" torque, 1.15 service factor
Suction scrubber constructed per the following:
- Designed, constructed, stamped and National Board Certified per ASME Section VIII
- 1/8" corrosion allowance
- Condensate level controls, gauges, pump rated for flow and pressure
Piping materials, welding procedures, design and construction are per the following:
- All gas transmission piping 2” and smaller shall be either NPT or tubing
- ANSI B31.3 latest edition
Vapor Recovery Control Panel is designed per NEC Class I, Division II, Class B, C & D with:
- TESCORP vapor recovery logic, controls and indicators
- Linear flow control logic with proportional bypass valve
- Load/unload flow control and control logic
BVR-MODULAR 1 Unit Construction:
- All electrical components and wiring per NEC Class I, Division II, Class B, C & D
- All rotating equipment is fully protected with non-sparking guards
- All units receive a complete mechanical/control run test with documentation
Options:
- Controls and panels per customer preference
- Motor starters and/or VFD drives
- 2 or 3 piece distance piece and seal assemblies available
- Sour gas trim for compressor available
